Leírás
A termék kiegészítőivel kapcsolatban kérem, keresse kollégáinkat!
SPECIFICATIONS :
| MODEL | VERTICAL MINI DUAL GEL SYSTEM |
| Dimensions (LxWxH) | 14.5 X 20.5 X 15.5 cm |
| Construction Material | Acrylic |
| Gel Size (Max) (WxH) | 8 X 7cm, 2 gels |
| Buffer Required | 200 + 50 ml |
| Electrodes, Wires | Brass, Platinum |
| Standard Combs – Teflon | 7 Well-1.0mm and 1.5mm (2 Nos each) |
| Standard Spacers- Teflon | 1.0 mm and 1.5 mm (2Nos each) |
| Maximum Sample Capacity | 20 |
| Time Consumed | 2 to 3 hrs |
| Recommended power supply | E12377 |

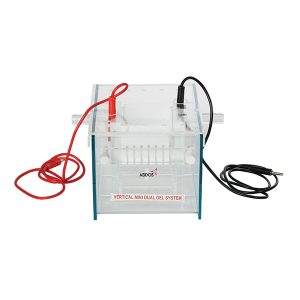

Vertical Mini Dual Slab Gel Electrophoresis System – Basic unit includes Dual Vertical Assembly, Glass Plates (Rectangular & Notched) : 2 sets, Comb 0.5 mm Thickness(7 wells) – 2 No’s, Comb 1 mm Thickness (7 wells) – 2 No’s., Spacer 0.5 mm Thickness – 4 No’s, Spacer 1.0 mm Thickness – 4 No’s, Gel Casting Stand – 1No, Supporting
Screws-2 No’s, Safety Lid – 1 No, Connecting Cord – 1 Pair
Descriptions
- Abdos Vertical dual mini system is designed to run two mini PAGE or SDS-PAGE hand cast gels.
- The system comes with standard casting unit, combs & spacers of 1 & 1.5mm thickness & a set of glass plates.
- Low buffer consumption design having small footprint area, occupies minimal lab.
- bench space.
